格莳国际Growshine：柳工 CPCD50 平衡重式液力叉车参数配置
广数供应链运营团队, 28 01月, 2025，浏览：次
| 性能参数 |
| 额定起重量 ...............................................5000kg |
| 载荷中心距 ................................................600mm |
| 最大起升高度 .............................................3000mm |
| 货叉自由起升高度 ..........................................200mm |
| 最大起升速度(满载) ......................................520mm/s |
| 最大爬坡度(满载) .........................................30/25% |
| 最小转弯半径 .............................................3250mm |
| 自重 .....................................................8000kg |

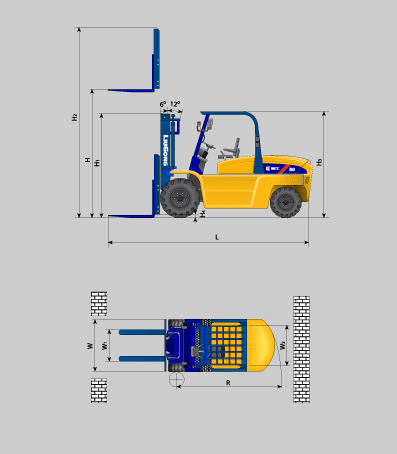

| R ........................................................3250mm |
| L ........................................................3405mm |
| W ........................................................2045mm |
| W1 .......................................................1492mm |
| W2 .......................................................1730mm |
| H ........................................................3000mm |
| H1 .......................................................2503mm |
| H2 .......................................................4409mm |
| H3 .......................................................2490mm |
| H4 ........................................................203mm |
 |
