格莳国际Growshine：南特 NT130 全液压履带式挖掘机参数配置
广数供应链运营团队, 26 01月, 2025，浏览：次

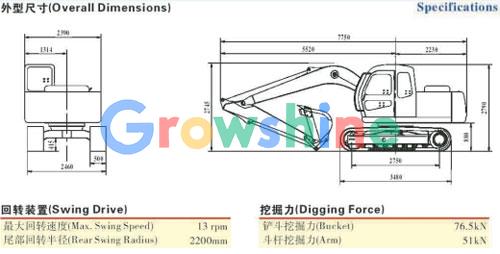

A. Overall height | 2790mm |
B. Overall length | 7750mm |
C. Track overall width | 2460mm |
D. Track shoe width | 500mm |
E. Upperstructure ground clearance | 880mm |
F. Minimum ground clearance | 415mm |
G. Center to center(idler to sprocket) | 2750mm |
H. Track overall length | 3480mm |
I. 上平台宽度 | 2390mm |
M. Tail swing radius | 2230mm |
Working weight | 12850kg |
Ground pressure | 40KPa |
| |

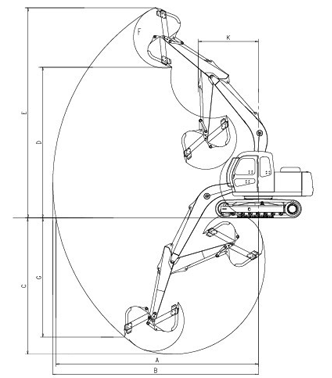

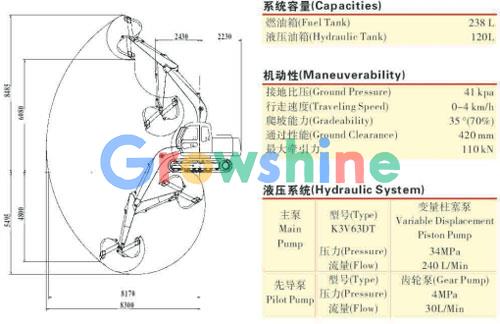

| PERFORMANCE SPECS | A. Maximum dig radius | 8300mm | B. Dig radius at groundline | 8170mm | C. Maximum dig depth | 5495mm | D. Dump height | 6080mm | E. Overall reach height | 8485mm | F. Bucket rotation | 175° | G. Vertical straight wall dig depth | 4800mm | K. 工作装置最小回转半径 | 2430mm | Arm digging force | 51KN | Bucket digging force | 76.5KN | BUCKET | Width | Capacity | Weight | 860mm | 0.6 m3 | 340kg | |
| | ENGINE | | Model | MITSUBISHIFUSO 4D34-TL | Cylinders | 4 | Bore/Stroke | 104×115mm | Displacement | 3.91L | Fuel injection | Direct | Fuel injection pump | Mechanical | Fuel | Diesel | Fuel filter | Full flow | Cooling | Water-cooling | Horswpower(net) | 83.5kw @2200rpm | Maximum torque(net) | 410N·m @1600rpm | BOOM/ARM | | Boom | | Swing | | Length | 4600mm | Boom weight | 760kg | Arm | | Length | 2500mm | Arm weight | 330kg | UNDERCARRIAGE | | Number of rollers | | Top,each track | 1 | Bottom,each track | 7 | Gradability | 58%(30°) | HYDRAULICS | | Pumps(2) | 2×Variable displacement piston pump | Capacity- Maximum | 2×120L/min | System relief pressure- | | Standard | 31.4MPa | Pilot control hydraulic system- | | Pumps(1) | Gear pump | Maximum capacity | 22L/min | Relief pressure | 3.9MPa | Control valves- | | 8 function multiple control valve | | Pump #1 for right travel and house swing and arm function | Pump #2 for left travel and boom function and bucket function | Pump #3 for pilot valve | | Swing- | | Motor(1) | Fixed displacement axial piston design | Speed | 0-13rpm | Brake | Spring applied,hydraulically released with dual cushion relief | Tail swing radius | 2230mm | Travel- | | Motor(2) | Two-speed axial piston design | Final drive | Planetary gear reduction | Travel speeds- | Forward/Reverse | Low | 2.1km/h | High | 4km/h | HYDRAULIC CYLINDERS | | Boom cylinder(2) | | Bore diameter | 105mm | Rod diameter | 70mm | Stroke | 980mm | Arm cylinder(1) | | Bore diameter | 115mm | Rod diameter | 80mm | Stroke | 1175mm | Bucket cylinder(1) | | Bore diameter | 95mm | Rod diameter | 65mm | Stroke | 885mm | ELECTRICAL | | Voltage | 24 volts | Alternator | 50 amp | Batteries(2) 12V | Heavy-duty | SERVICE CAPACITIES | | Hydraulic tank | | Refill capacity | 120L | Total system | 200L | Engine | | w/filter change | 20L | Fuel | 235L | Radiator | 16L | OPERATING WEIGHT | | With 75kg operator | 12850kg | Ground pressure | 40KPa |    |
|
