格莳国际Growshine：南特 NT60 全液压履带式挖掘机参数配置
广数供应链运营团队, 26 01月, 2025，浏览：次

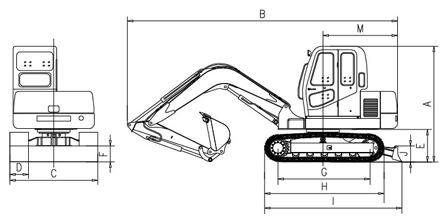

 | A. Overall height | 2645mm | B. Overall length | 6160mm | C. Track overall width | 2000mm | D. Track shoe width | 450mm | E. Upperstructure ground clearance | 740mm | F. Minimum ground clearance | 360mm | G. Center to center(idler to sprocket) | 2100mm | H. Track overall length | 2715mm | I. 底盘长度 | 3150mm | J. Backfill blade height | 360mm | M. Tail swing radius | 1700mm | Working weight | 6000kg | Ground pressure | 30KPa | |

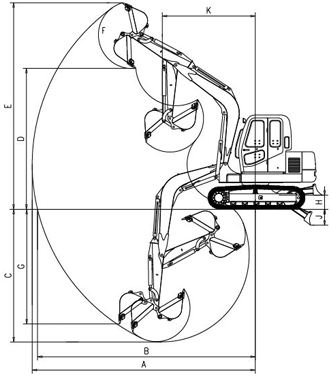

| PERFORMANCE SPECS | | A. Maximum dig radius | 6255mm | B. Dig radius at groundline | 6105mm | C. Maximum dig depth | 3720mm | D. Dump height | 3950mm | E. Overall reach height | 5790mm | F. Bucket rotation | 170° | G. Vertical straight wall dig depth | 3215mm | H. Lift above groud | 385mm | J. Drop below groud | 450mm | K. 工作装置最小回转半径 | 2610mm | Arm digging force | 37KN | Bucket digging force | 27KN | BUCKET | | Width | Capacity | Weight | 668mm | 0.18 m3 | 150kg | |
| |
Model | YC4F60G / YANMER 4TNV98 | Cylinders | 4 | Bore/Stroke | 98×100mm | Displacement | 3.319L | Fuel injection | Direct | Fuel injection pump | Mechanical | Fuel | Diesel | Fuel filter | Full flow | Cooling | Water-cooling | Horswpower(net) | 45.3kw @2200rpm | Maximum torque(net) | 227.2～247.3N·m @1400rpm | BOOM/ARM | | Boom | | Swing | 80° left / 50° right | Length | 3100mm | Boom weight | 230kg | Arm | | Length | 1500mm | Arm weight | 80kg | UNDERCARRIAGE | | Number of rollers | | Top,each track | 1 | Bottom,each track | 5 | Gradability | 58%(30°) | HYDRAULICS | | Pumps(3) | 2×Variable displacement piston pump+gear pump | Capacity- Maximum | 2×55L/min+36.5L/min | System relief pressure- | | Standard | 21MPa+18MPa | Pilot control hydraulic system- | | Pumps(1) | Gear pump | Maximum capacity | 9.9L/min | Relief pressure | 3.5MPa | Control valves- | | 8 function multiple control valve | | Pump #1 for right travel and boom function and bucket function | Pump #2 for left travel and arm function | Pump #3 for house swing and dozer function and boom swing | Pump #4 for pilot valve | | Swing- | | Motor(1) | Fixed displacement axial piston design | Speed | 0-11rpm | Brake | Spring applied,hydraulically released with dual cushion relief | Tail swing radius | 1700mm | Travel- | | Motor(2) | Two-speed axial piston design | Final drive | Planetary gear reduction | Travel speeds- | Forward/Reverse | Low | 2.2km/h | High | 4km/h | HYDRAULIC CYLINDERS | | Boom cylinder(1) | | Bore diameter | 110mm | Rod diameter | 55mm | Stroke | 720mm | Arm cylinder(1) | | Bore diameter | 85mm | Rod diameter | 55mm | Stroke | 600mm | Bucket cylinder(1) | | Bore diameter | 80mm | Rod diameter | 45mm | Stroke | 840mm | ELECTRICAL | | Voltage | 12 volts | Alternator | 40 amp | Batteries(1) 12V | Heavy-duty | SERVICE CAPACITIES | | Hydraulic tank | | Refill capacity | 92L | Total system | 140L | Engine | | w/filter change | 10L | Fuel | 75L | Radiator | 10L | OPERATING WEIGHT | | With 75kg operator | 6000kg | Ground pressure | 30KPa |    |
