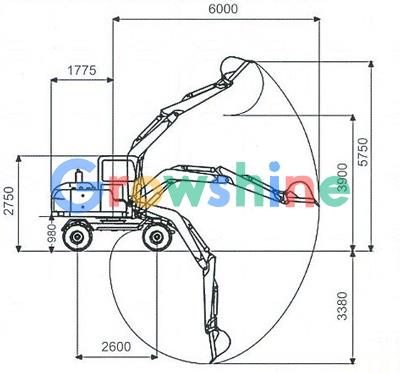

工作范围RANGEOFOPERATION | |
动臂长度Boomlength | 3030mm |
斗臂长度Armlength | 1860mm |
最大挖掘距离MaximumDiggingReach | 6000mm |
最大挖掘深度MaximumDiggingDepth | 3380mm |
最大挖掘力MaximumDiggingForce | 45KN |
最大挖掘高度MaximumDiggingHeight | 5750mm |
最大卸载高度MaximumDumoingHeight | 3900mm |
最小回转半径MinmunPlatformTailtumyingRadius | 1775mm |
外型尺寸DIMENSIONS | |
轴距Wheelbase | 2600mm |
轮距Track | 1600mm |
(总长×总宽×总高)运输状态 (long×wide×high)travelposition | 5500mm×2100mm×2750mm |
配重离地间隙GroundClearanceofCounterweight | 980mm |
最小离地间隙MinmunGroundClearance | 200mm |
技术性参参数THECHNICAL PERFORMANCEANDSPECIFICATION | |
旋转角度angleofrotation | 360° |
整机重量Machinewerght | 5380kg |
发动机型号Engingetype | SL/4100ABK/498BPG高配置 |
液压系统工作压力 Hydraulic system Working pressure | 19.5Mpa |
额定功率RatedPower | 43kw/55Hp/48kw |
行驶速度(低/高)Rate of travel/travel speed(Low/High) | 9/36km/h |
最大牵引力Maxhaulingforce | 50KN |
接地比压Prssure to the Ground | 52Kpa |
爬坡度Gradeability | 58%/30度 |
全回转时间Full circle swinging time | 5.5s |
挖掘斗容Volumeofbucket | 0.2-0.3m³ |
回转过载压力Revolution overdrive pressure | 11mPa |
燃油量FQTFuelQuantity | 4≥L/h. |
燃油箱容量Capacityofthefueltank | 130L |
液压油容量HydraulicTankCapacity | 100L |
